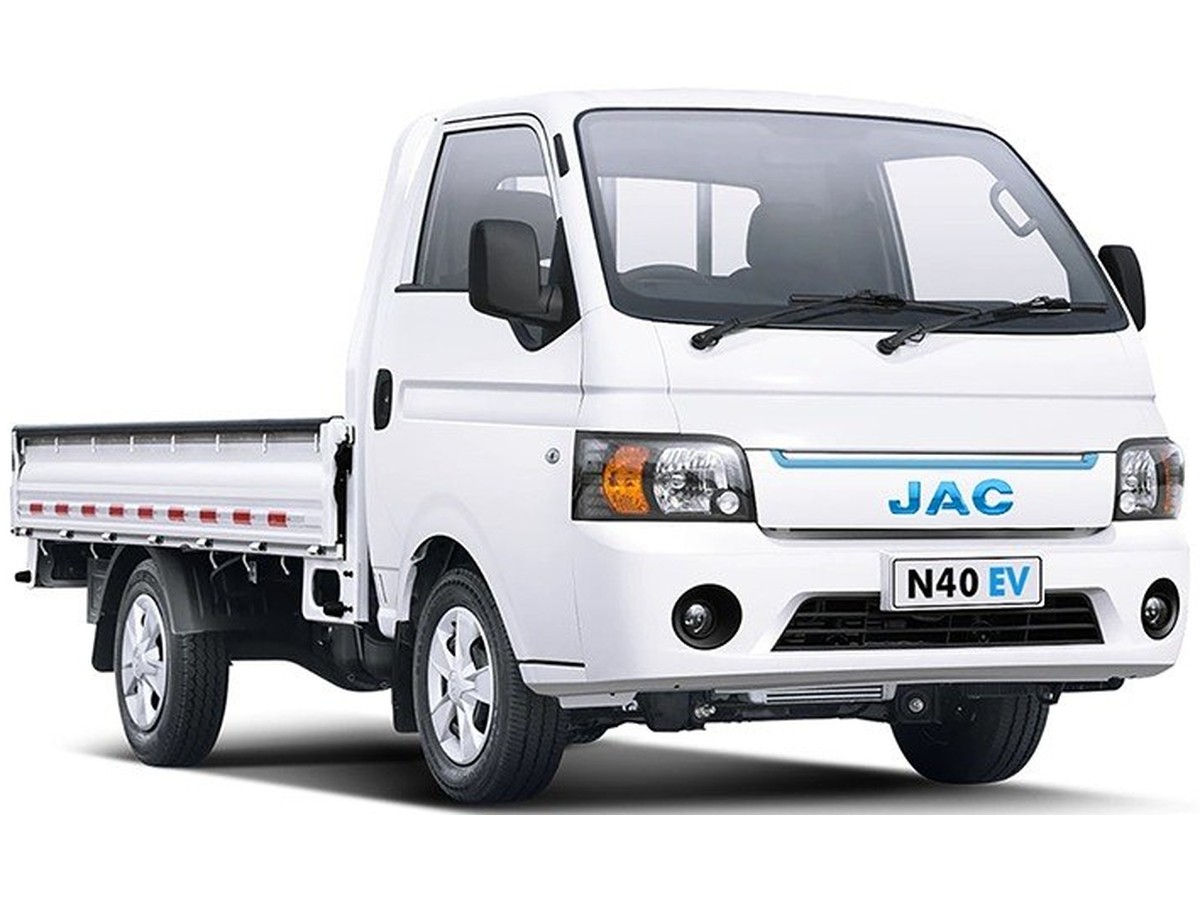

JAC N40EV
3.7-tonne light-duty electric truck with 230 km range, 63.75 kWh battery and 11 ft body.
Complete data sheet.
Click any group to expand. All figures from manufacturer's specification; subject to homologation for Singapore LTA Vehicle Type Approval.
| Rated range | 230 km |
|---|---|
| Battery total capacity | 63.75 kWh |
| Battery type | Lithium iron phosphate |
| Battery capacity | 200 Ah |
| Battery voltage | 318.78 V |
| Energy consumption | 29.7 kWh / 100 km |
| Charging standard | CCS Combo 2 |
|---|---|
| AC charging 20–80% | 5 h 30 min |
| DC charging 20–80% | 35 min |
| Model code | HFC1040EV3 |
|---|---|
| Electric motor | Permanent magnet synchronous |
| Max net power | 105 kW @ 3,342–12,000 rpm |
| Max net torque | 300 Nm @ 3,342 rpm |
| Motor speed | 3,342 – 12,000 rpm |
| Max speed | 90 km/h |
| Gradient | 28% |
| Overall L × W × H | 5,300 × 1,750 × 1,990 mm |
|---|---|
| Wheelbase | 3,100 mm |
| Body length | 3,347 mm |
| Gross vehicle weight | 3,700 kg |
| Curb weight | 1,719 kg |
| Payload (GVW less curb weight) | 1,981 kg |
| Track front / rear | 1,518 / 1,518 mm |
| Tyres | 195/70R15 12PR |
| Brake type | Hydraulic |
|---|---|
| Systems | Front disc, rear drum |
| ABS | Yes |
| Anti-slip regulation | Yes |
| Electronic stability control | Yes |
| Hill-start assist | Yes |
| Braking energy recovery | Yes |
| Seating | 1 driver + 2 passengers |
|---|
Cover that matches the duty cycle.
8 years / 400,000 km
Battery warranty.
5 years / 200,000 km
Motor warranty.
5 years / 200,000 km
Vehicle warranty.
JAC N40EV — frequently asked questions.
What is the driving range of the JAC N40EV?
The JAC N40EV has a stated driving range of 230 km. Real-world range varies with load, route profile, ambient temperature and driving style.
What battery does the JAC N40EV have?
The JAC N40EV uses a 200 Ah battery pack (Lithium iron phosphate).
How long does the JAC N40EV take to charge?
Manufacturer-stated charging time for the JAC N40EV is 5 h 30 min (charging) and 35 min (charging). Actual time depends on charger output, battery state of charge and ambient conditions.
What is the payload capacity of the JAC N40EV?
The JAC N40EV has a gross vehicle weight of 3,700 kg (dimensions & weight) and 1,981 kg (dimensions & weight) and a payload of 1,981 kg.
What warranty is offered on the JAC N40EV?
Manufacturer warranty on the JAC N40EV: Battery — 8 years / 400,000 km; Motor — 5 years / 200,000 km; Vehicle — 5 years / 200,000 km. Terms are set by the manufacturer and should be confirmed in writing before purchase.
Is the JAC N40EV available in Singapore?
The JAC N40EV is listed on EVhubs as available to Singapore fleet operators. EVhubs is a supplier-neutral listing platform — we publish specifications, not prices. Contact us for a quotation sized to your route and duty cycle.
